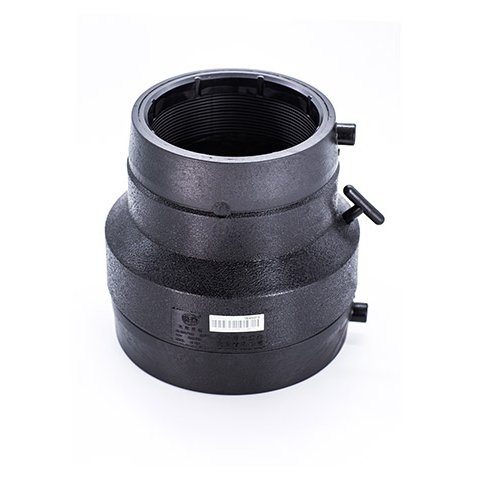

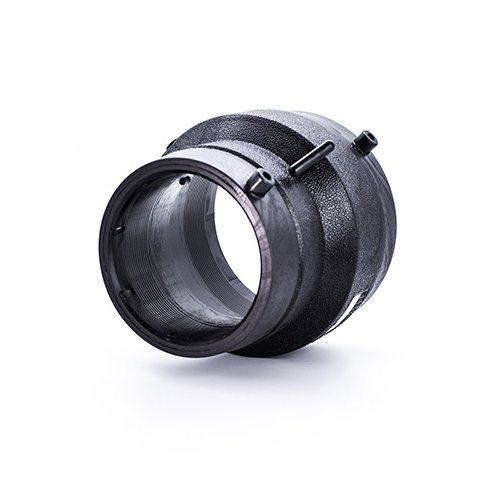

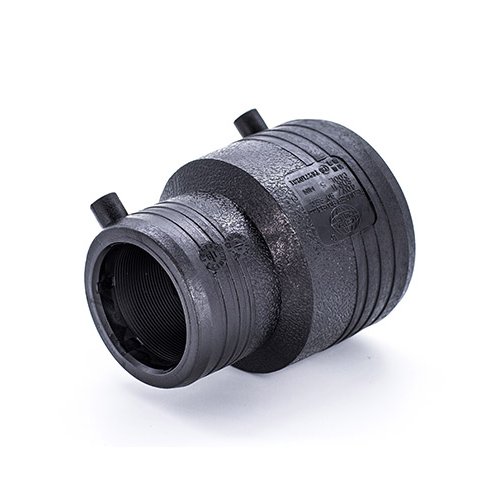

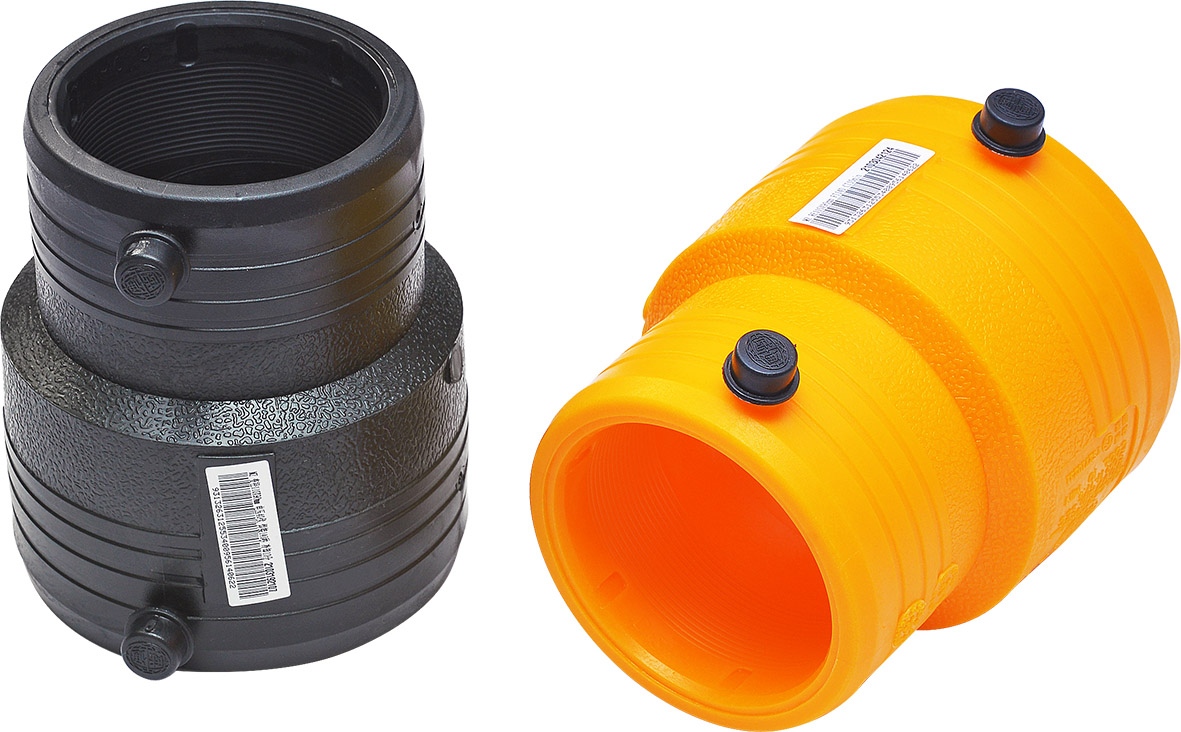

EF Reducer

Introduction

• Fittings meet standards (GB/T 15558.3/GB/T13663.3/EN1555.3/EN12201.3/ISO4437.3/S04427.3/GIS PL2-4).
• PE100 fittings are used for gas transmission and distribution pressure up to 0.8MPa, and for water transmission and distribution pressure up to 1.6MPa.
• PE80 fittings are used for gas transmission and distribution pressure up to 0.64MPa, and for water transmission and distribution pressure up to 1.25MPa.
• The welding voltage is 40V, the terminal is 4.0mm, and the barcode on the fitting provides the optimal welding parameters.
• It is certified by BSI Kitemark

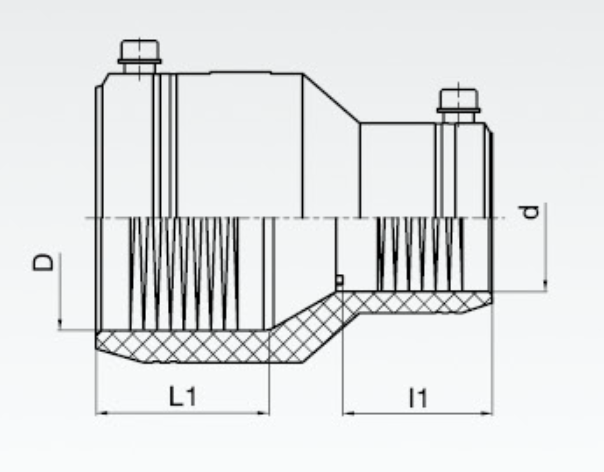

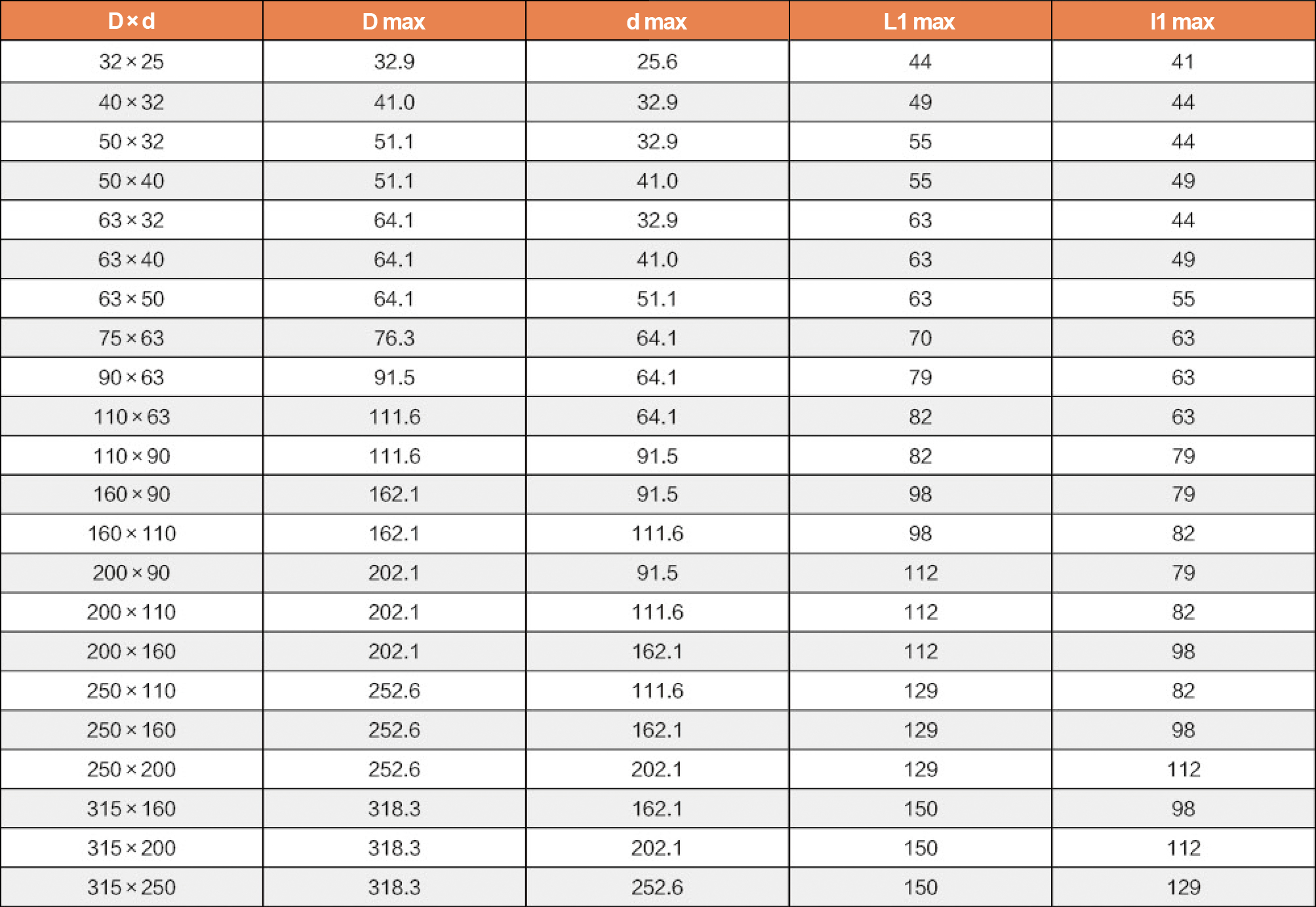

Specification

The product melting zone is designed far wider than the requirements of GB/ISO standards, thus providing the system with a higher safety factor.
